Quick Details

Origin: Guangdong, China (Mainland)

Brand Name: Unionwell

model: GPS100-80-100CC-2CPGLU

Rated current: 0.1A, 3A, 5A, 16A

Terminal type: quick connect terminal

Contact form: Single pole single throw normally open

Safety certification: All products have obtained major global safety certifications.

Company assurance system: ISO9001, IATF16949, and ISO14001

application

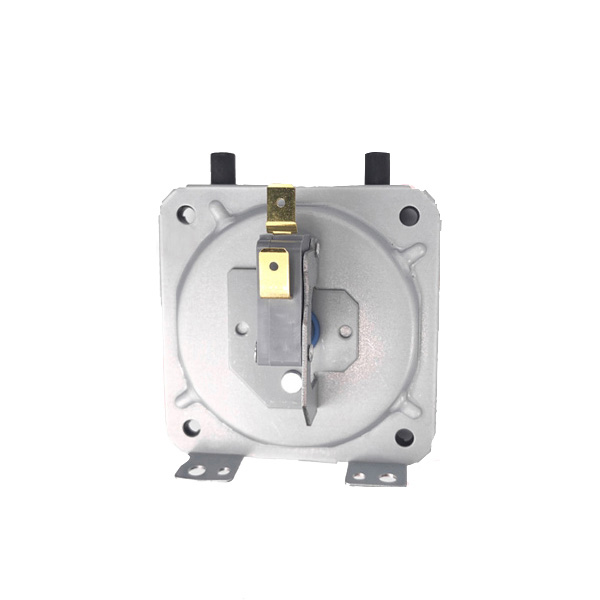

The GPS100 series pressure switch is specially designed for the OEM market with high demand.

Typical applications include boilers, water heaters, HVAC systems, and other industrial equipment.

This pressure switch has customer customized pressure, positive pressure sensing, negative pressure sensing, and pressure sensing features.

Highly sensitive and reliable micro switches are used as their main switching components.

Micro switches can provide load control capability up to 16A 125/250VAC.

specifications

Pressure setting range: 10-1500Pa

Opening pressure range: 25-1500Pa

Closing pressure: 10Pa Min

The pressure setting needs to be adjusted in the factory
